Diamond Resin Sanding Belts – Long-Life Diamond Belts for Stone, Glass & Gemstone Grinding

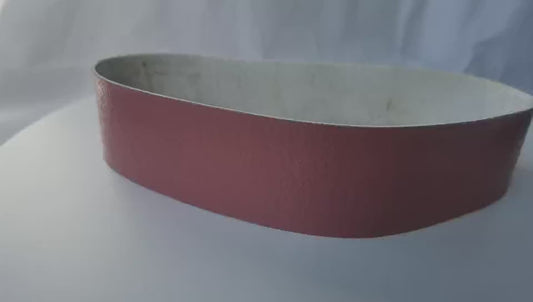

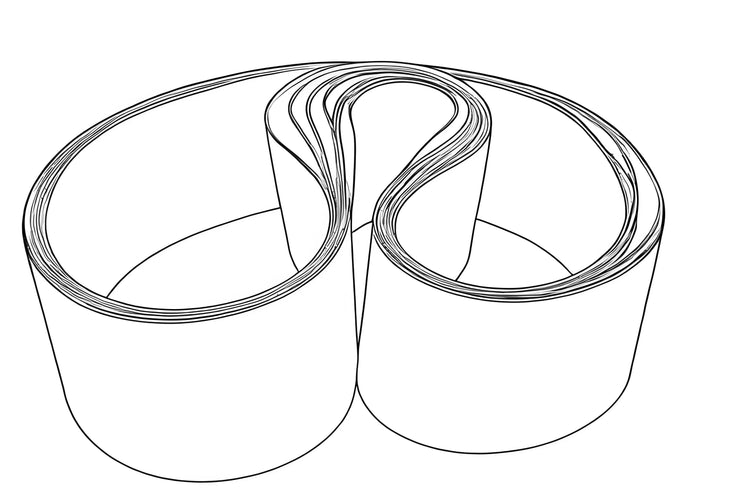

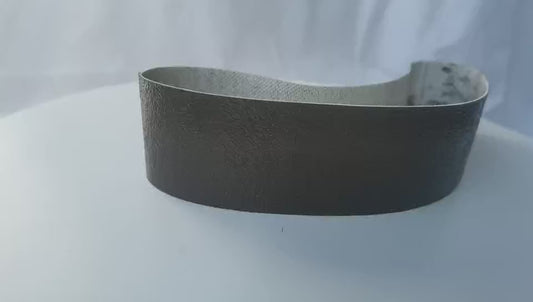

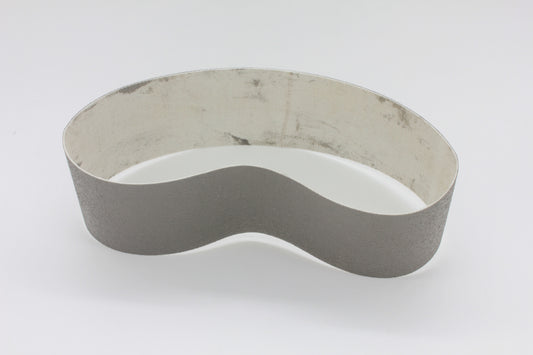

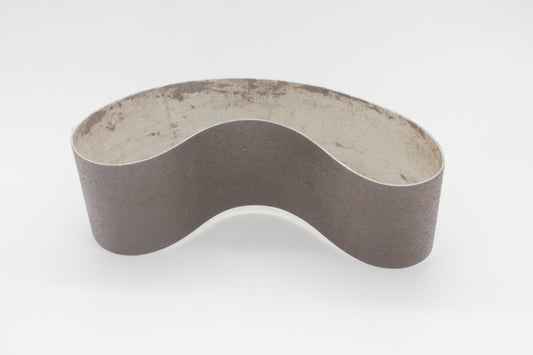

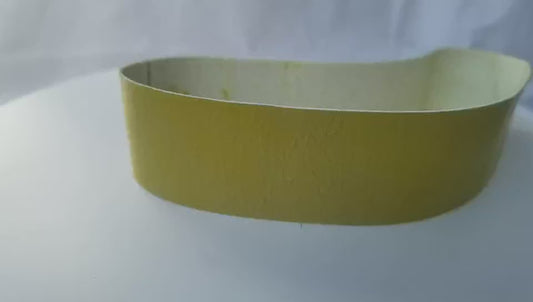

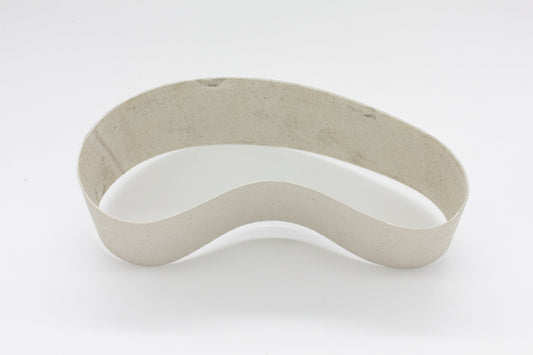

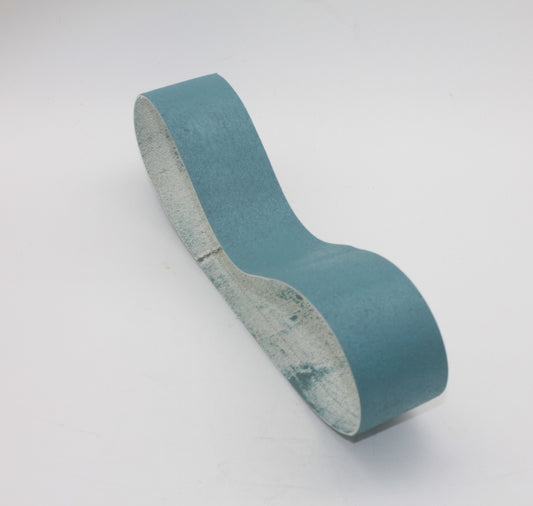

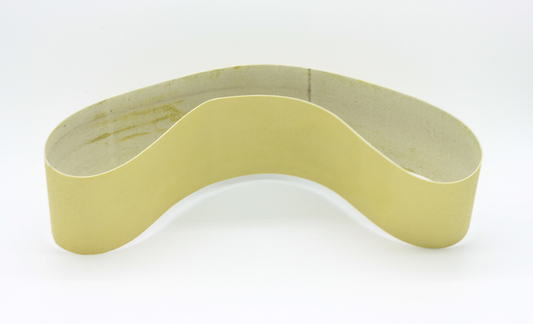

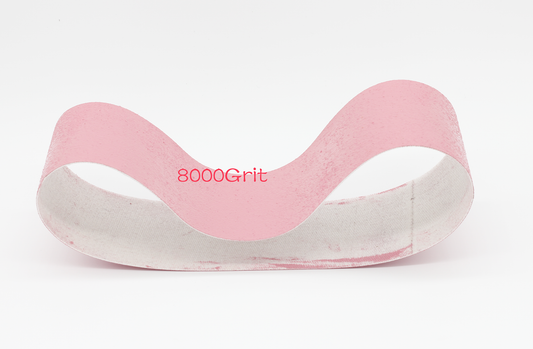

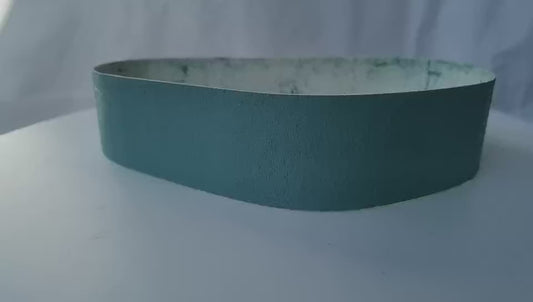

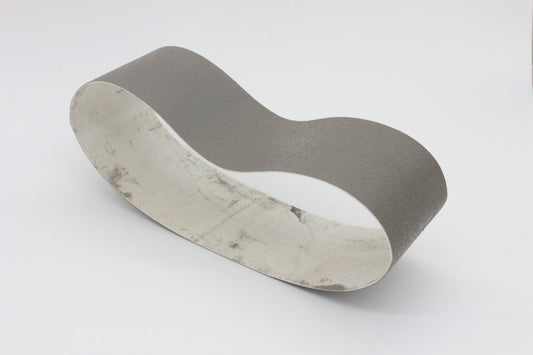

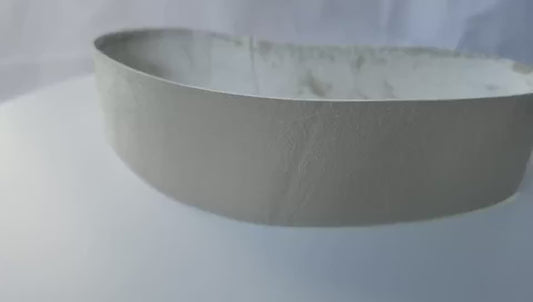

Diamond resin sanding belts featuring a durable polyester backing with reinforced joint and premium resin diamond bond — delivering 50–100× longer service life than silicon carbide belts on hard lapidary materials. Designed exclusively for wet grinding and polishing on stones, glass, gemstones, beryl, topaz, opal, and quartz. Extends to ultra-fine 50,000 grit for polishing directly on the belt — completing the full grinding-to-polish sequence on the drum wheel without switching to separate polishing pads. Available in 6"x1.5", 6"x2.5", and 8"x3" sizes.

🔥 Shop Diamond Resin Sanding Belts – From $20.00

Product Format Guide

Belt Size Available Grits Price Range Best For
6" x 1.5" 60, 140, 280, 325, 600, 800, 1200, 3000, 14000, 50000 $20.00 Standard 6"x1.5" lapidary drum wheel machines
6" x 2.5" 60, 140, 280, 325, 600, 800, 1200, 3000, 14000, 50000 $25.00–$30.00 Standard 6"x2.5" lapidary drum wheel machines
8" x 3" 60, 140, 280, 325, 600, 800, 1200, 3000, 14000, 50000 $30.00–$35.00 Larger 8"x3" lapidary drum wheel machines

Diamond Resin vs. Silicon Carbide Belt Comparison

Feature Diamond Resin Belts Silicon Carbide Belts
Service life on hard stone (agate, jasper) 50–100× longer Standard baseline
Grit range 60 through 50,000 Typically 60–1000
Polish directly on belt ✅ Yes (up to 50,000 grit) ❌ No
Heat buildup Reduced Higher
Wet use required Yes — always Wet or dry
Cost per stone finished Lower (long-term) Higher (frequent replacement)

Related Tools

Frequently Asked Questions

  • Q: What grit diamond resin belt should I use to grind and polish agate cabochons on a lapidary drum wheel?
    A: For grinding and polishing agate cabochons on an expanding drum wheel, use this sequence: 60–140 grit for initial shaping and dome profiling, 280–600 grit for surface smoothing, 800–1200 grit for fine pre-polish preparation, 3000–14000 grit for high-gloss polish, and 50000 grit for final mirror polish directly on the belt. Diamond resin belts allow you to complete the entire grinding-to-polish sequence on the drum wheel without switching to separate polishing pads.
  • Q: How long do diamond resin sanding belts last compared to silicon carbide belts on hard lapidary stone?
    A: Diamond resin sanding belts last 50–100 times longer than silicon carbide belts on hard lapidary stones like agate, jasper, and quartz (Mohs 7). A single diamond resin belt can replace an entire box of silicon carbide belts for hard stone grinding — making them significantly more cost-effective for regular lapidary use despite the higher initial price. The resin bond continuously exposes fresh diamond cutting points as the surface wears, maintaining consistent cutting performance throughout the belt’s life.
  • Q: Can I use diamond resin sanding belts to grind and polish opal cabochons?
    A: Yes — diamond resin sanding belts work well for opal cabochons, but use fine to ultra-fine grits (600–50000) with light pressure and plenty of water cooling. Opal is heat-sensitive (Mohs 5.5–6.5) — the reduced heat buildup of diamond resin belts compared to silicon carbide makes them safer for opal grinding. Start at 600 grit to avoid removing too much material, and progress through 1200, 3000, 14000, and 50000 grit for a bright, play-of-color-enhancing final polish.
  • Q: What expanding drum wheel size do I need for 6"x2.5" diamond resin belts?
    A: A 6"x2.5" diamond resin sanding belt requires a 6" diameter x 2.5" wide expanding drum wheel. Always match the belt dimensions exactly to your drum wheel size — a 6"x2.5" belt will not fit correctly on a 6"x1.5" or 8"x3" drum. Verify your drum wheel’s exact diameter and width before ordering belts.
  • Q: Are diamond resin sanding belts compatible with the Genie lapidary machine and other standard lapidary machines?
    A: Diamond resin sanding belts in 6"x1.5", 6"x2.5", and 8"x3" sizes are compatible with most standard lapidary machines that use expanding drum wheels in these dimensions, including many Genie-style and similar hobby lapidary machines. Always verify your specific machine model’s drum wheel dimensions before ordering to ensure correct belt fit.
