Premium Sintered Diamond Saws

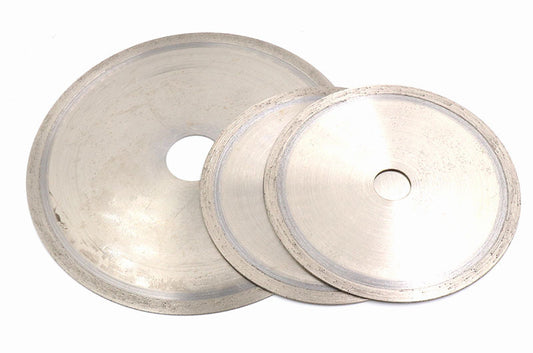

Premium Sintered Diamond Saws - Kingpin HSP Sintered Diamond Rim Saw Blades

Our Premium Sintered Diamond Saw Blades feature the Kingpin HSP sintered diamond rim construction - a professional-grade metal-bonded diamond rim that delivers superior cutting performance and longevity compared to standard electroplated blades. The sintered rim continuously exposes fresh diamond cutting points as it wears, maintaining consistent cutting efficiency throughout the blade working life. Available in 100mm x 1.0mm with 1/2", 5/8", and 3/4" hole size options.

Shop Premium Sintered Diamond Saws - $10.00

Specifications

Specification Detail
Diameter 100mm (~4")
Thickness 1.0mm
Hole sizes 1/2", 5/8", 3/4"
Bond type Sintered metal-bonded diamond rim (Kingpin HSP)
Price $10.00

Why Sintered Diamond Rim?

  • Continuous fresh cutting points - Sintered matrix exposes new diamonds as the rim wears
  • Longer blade life - Significantly outlasts electroplated blades in regular use
  • Consistent cutting performance - Maintains efficiency from first cut to last
  • Professional-grade quality - Kingpin HSP construction for demanding lapidary applications

Compatible Applications

  • Lapidary trim saw cutting - 100mm blade for small hobby trim saws and precision cutting
  • Gemstone rough trimming - sintered rim for consistent cuts on hard lapidary stone
  • Glass cutting - clean cuts on art glass and fused glass with minimal chipping
  • Ceramic and tile cutting - professional sintered rim for controlled ceramic cutting
  • High-volume cutting - sintered construction for extended service life in production use

Related Tools

Frequently Asked Questions

  • Q: What is the Kingpin HSP sintered diamond rim?
    A: Kingpin HSP refers to the premium sintered diamond rim construction used in these blades. The sintered metal bond distributes diamonds throughout the rim matrix - as the cutting face wears, fresh diamonds are continuously exposed for consistent cutting performance. This is the same technology used in professional-grade lapidary and stone cutting equipment.
  • Q: Should sintered diamond saw blades be used wet or dry?
    A: Always use wet. Run water or cutting oil over the blade continuously during cutting to cool the sintered rim, prevent heat damage to the stone, and maximize blade life.
  • Q: How does the Kingpin HSP blade compare to standard electroplated blades?
    A: Sintered blades significantly outlast electroplated blades because diamonds are distributed throughout the rim matrix rather than just on the surface. As the cutting face wears, fresh diamonds are continuously exposed - electroplated blades wear through their single diamond layer permanently and must be replaced.
