Flexible Diamond Products: Revolutionizing Precision Across Industries

In the world of industrial abrasives, flexibility is no longer a compromise—it’s a strategic advantage. Hans Flexible Diamond Products redefine material processing by combining diamond’s unmatched hardness with engineered adaptability, enabling professionals to tackle complex geometries, delicate surfaces, and high-efficiency workflows. This blog explores how these innovative tools are transforming industries, from aerospace composites to luxury watchmaking.

What Are Flexible Diamond Products?

Flexible diamond tools integrate diamond abrasives into pliable substrates, merging cutting/grinding performance with contour-conforming capabilities. Unlike rigid diamond tools, they excel in applications requiring:

  • Surface following: Conforming to uneven or curved geometries

  • Vibration damping: Protecting brittle materials from microfractures

  • Thermal management: Dissipating heat through flexible matrices

Core Product Categories & Technical Specifications

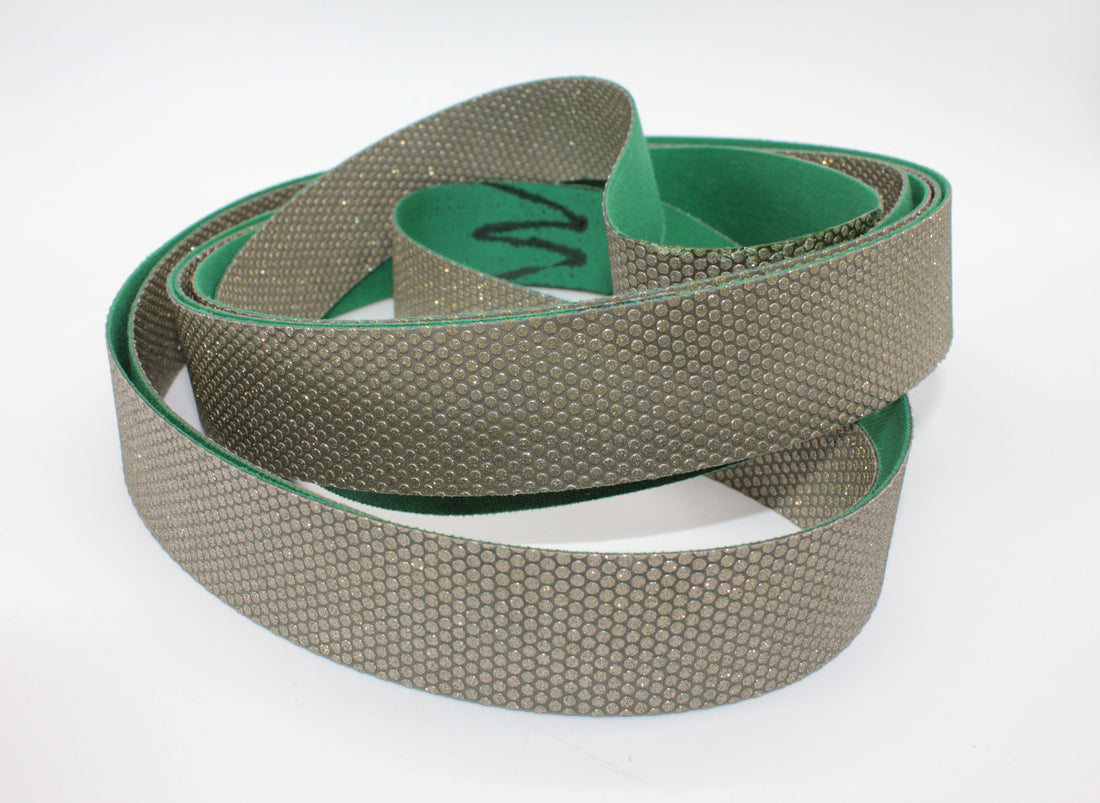

1. Diamond Flexible Belts & Discs

  • Structure: Polyester/resin backing + electroplated diamond (2–400 µm grit)

  • Key Models:

    • FlexiGrind Pro Belt (50–2000 grit): For robotic deburring of titanium alloys

    • MirroFlex Polishing Discs (3000–14,000 grit): Optical lens finishing

  • Technical Edge:

    • 360° multidirectional abrasion

    • Operates at 10–35 m/s line speed

2. Diamond Impregnated Films & Sheets

  • Composition: Nanocrystalline diamond on PET/PEN substrates (0.1–0.5mm thick)

  • Applications:

    • Semiconductor wafer backgrinding (≤5µm TTV)

    • Carbon fiber composite layup smoothing

  • Innovation:

    • Isotropic abrasion for uniform material removal

    • Reusable up to 8 cycles

3. Diamond Coated Textiles

  • Design: Woven aramid fibers with CVD diamond coating

  • Use Cases:

    • Hand-sanding intricate jewelry molds

    • Restoring historical stone carvings

  • Advantage:

    • 180° twist capability without abrasive loss

    • Intrinsic flame resistance (UL94 V-0 rated)

4. Diamond Fiber Wheels

  • Architecture: Non-woven nylon filaments + diamond abrasive clusters

  • Performance:

    • 30% faster stock removal vs. rigid wheels on Inconel

    • Self-sharpening filament design

  • Industrial Fit:

    • Turbine blade root form grinding

    • Dental zirconia crown contouring

Breakthrough Applications

Aerospace Manufacturing

  • Composite Trimming: Flexible diamond belts finish CFRP fuselage panels with <2µm Ra, eliminating delamination.

  • Turbine Blade Repair: Diamond fiber wheels blend thermal barrier coatings without substrate damage.

Automotive Innovation

  • Battery Case Machining: Diamond films deburr aluminum battery housings at 150 parts/hour.

  • Headlight Lens Polishing: MirroFlex discs restore polycarbonate optics to 92% light transmittance.

Electronics Precision

  • 5G Ceramic Filters: Diamond sheets achieve ±0.01mm dimensional tolerance on microwave dielectrics.

  • Flexible PCB Trimming: Coated textiles route FR4 substrates with 25µm edge precision.

Art Conservation

  • Marble Sculpture Cleaning: Diamond textiles remove centuries-old soot without eroding details.

  • Stained Glass Restoration: Flexible discs repair lead came joints with 0.1mm accuracy.

5 Technological Differentiators

  1. Graded Density Abrasives

    • Zone 1 (Edge): 50% diamond concentration for aggressive cutting

    • Zone 2 (Center): 25% concentration for fine finishing

  2. Triple-Layer Backing System

    • Shock-absorbing foam intermediate layer reduces peak grinding forces by 40%

  3. Smart Cooling Channels

    • Micro-perforations in belts allow coolant penetration at 0.3mL/cm²/min

  4. Magnetic Quick-Change

    • Ferrite-embedded backing enables instant tool swaps on automated systems

  5. UV Curing Compatibility

    • Photoactive resin bonds withstand 150°C for in-process curing applications

Comparative Advantage Over Traditional Methods

Parameter Flexible Diamond Rigid Tools
Complex Contour Fit 0.05mm profile adherence Limited to flat surfaces
Heat Generation 65°C max (dry operation) 120–180°C typical
Tool Change Frequency 8–12 hours continuous use 2–3 hour replacement
Finish Consistency Ra 0.1–0.3µm across curves Ra varies ±0.5µm

Implementation Guidelines

Surface Preparation Protocol

  1. Substrate Analysis: Use portable roughness tester to determine initial Ra

  2. Grit Progression:

    • Coarse (80–120 grit): 0.5–1.5mm stock removal

    • Medium (180–400 grit): Surface leveling

    • Fine (800+ grit): Final finish

  3. Motion Patterns:

    • Oscillating (for flat surfaces)

    • Orbital (contoured geometries)

    • Cross-hatch (hybrid materials)

Equipment Pairing

  • Handheld Tools: 75mm–150mm pneumatic sanders (2.5–5 bar)

  • Robotic Cells: 6-axis arms with force feedback (<10N variance)

  • CNC Integration: Adaptive pressure control spindles

Sustainability Impact

  • Waste Reduction: 68% less abrasive consumption vs. bonded wheels

  • Energy Efficiency: 0.8kW avg. power vs. 3.5kW for equivalent rigid tools

  • Recyclability: 92% substrate recovery rate through thermal separation

Future-Proof Your Workshop
Hans’ Flexible Diamond Ecosystem offers:

  • Custom Grit Mapping: Program abrasive density across tool surfaces

  • AI-Assisted Selection: Upload part geometry for optimal tool recommendations

  • On-Demand Coating: Apply diamond layers to customer-supplied substrates
