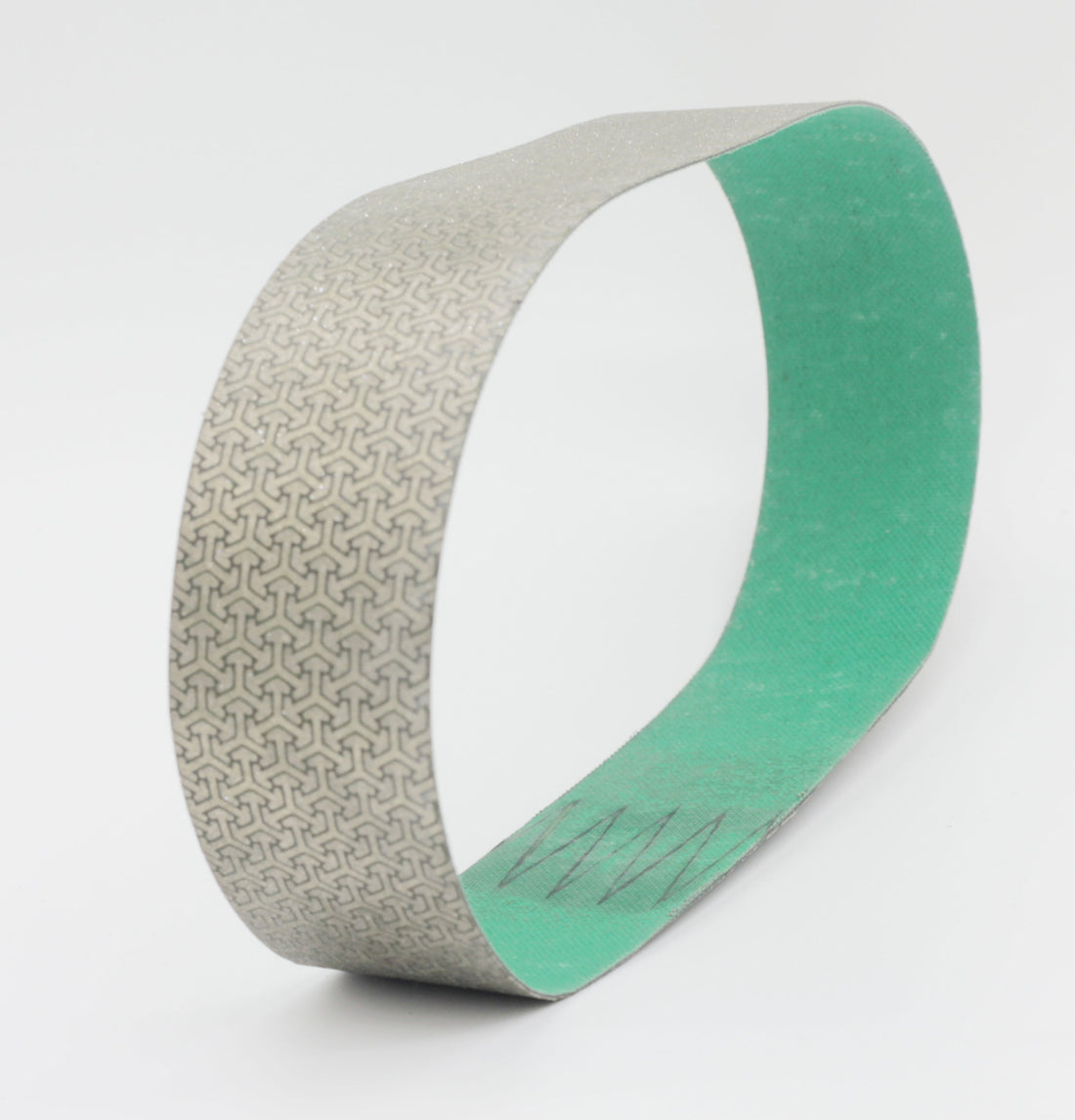

Flexible Diamond Sanding Belts: The Ultimate Tool for Precision Surface Engineering

In the realm of industrial abrasives, Flexible Diamond Sanding Belts stand as a pinnacle of innovation, merging diamond’s unparalleled hardness with engineered flexibility to tackle the most demanding surface finishing challenges. Hans Super Abrasive Products Co., Ltd redefines material processing with these advanced tools, designed to deliver micron-level precision on complex geometries, exotic alloys, and brittle substrates. This blog dives deep into their technical specifications, industry applications, and game-changing advantages.

What Makes Diamond Sanding Belts Unique?

Unlike conventional abrasive belts, Hans’ Flexible Diamond Sanding Belts leverage a three-dimensional diamond matrix bonded to a flexible polymer backbone. This hybrid architecture enables:

  • Contour Conformity: Adapts to radii as tight as 2mm

  • Thermal Stability: Operates at 60°C+ without delamination

  • Multi-Directional Abrasion: Aggressive cutting in both longitudinal and lateral motions

Product Series & Technical Specifications

1. FlexiCut Pro Series (Heavy-Duty Grinding)

  • Grit Range: 40–120 (Coarse to Medium)

  • Bond Type: Hybrid resin-nickel composite

  • Key Features:

    • 8–12 m/s operational speed

    • 50% diamond concentration in staggered clusters

    • 75mm/100mm/150mm widths, endless joint design

  • Best For:

    • Deburring titanium aerospace components

    • Leveling 3D-printed metal parts

2. MirroFinish Series (Ultra-Precision Polishing)

  • Grit Range: 400–3000 (Fine to Superfine)

    • Optional 5000+ grit for optical surfaces

  • Backing Material: Polyester-aramid blend with micro-perforations

  • Technical Edge:

    • 0.02µm Ra surface finish achievable

    • Coolant-compatible (ethanol, water-based)

  • Best For:

    • Medical implant polishing (Ti6Al4V, CoCr alloys)

    • Silicon wafer backgrinding

3. NanoFlex Series (Nano-Surface Engineering)

  • Grit Technology: Monocrystalline diamond particles (0.1–5µm)

  • Structure: Gradient-density abrasive layers

    • Layer 1: 80% diamond for stock removal

    • Layer 2: 50% diamond for finishing

    • Layer 3: 30% diamond for polishing

  • Best For:

    • Diamond-like carbon (DLC) coating preparation

    • High-precision mold texturing

Industry-Specific Applications

Aerospace & Defense

  • Composite Finishing: Trim CFRP helicopter blades to 0.1mm tolerance

  • Turbine Blade Repair: Blend thermal barrier coatings without base metal erosion

  • Process Data:

    • Material Removal Rate (MRR): 15 cm³/min on Inconel 718

    • Surface Finish: Ra 0.4µm achieved in single pass

Automotive Manufacturing

  • Battery Housing Prep: Deburr aluminum casings at 120 units/hour

  • Transmission Components: Finish hardened gears to AGMA 14 quality

  • Case Study:

    • Reduced polishing time for EV motor shafts by 65% vs. ceramic belts

Electronics & Semiconductors

  • Ceramic Substrate Thinning: Achieve 0.5mm thickness on AlN plates with ±0.01mm flatness

  • 5G Filter Tuning: Adjust dielectric resonator dimensions to ±0.003mm

Art Conservation & Luxury Goods

  • Watchmaking: Finish sapphire crystal watch faces to optical clarity

  • Sculpture Restoration: Clean centuries-old bronze patina without material loss

5 Revolutionary Features

  1. Smart Cooling Channels

    • Laser-cut micro-holes (Φ0.3mm) allow direct coolant penetration, reducing workpiece temperature by 40°C vs. solid-back belts.

  2. Anti-Clogging Nano-Coating

    • Fluoropolymer layer repels swarf, maintaining 95% abrasive efficiency over 8-hour shifts.

  3. Magnetic Quick-Mount System

    • Ferrous strips enable tool-free belt changes in <10 seconds on automated lines.

  4. IoT-Ready Wear Sensors

    • Embedded RFID tags track remaining abrasive life (accuracy: ±5%).

  5. Custom Grit Zoning

    • Program variable diamond densities along the belt length for hybrid roughing/finishing operations.

Performance Comparison

Parameter Hans Diamond Belt Traditional Zirconia Belt
Service Life 120–150 hours 20–30 hours
Surface Consistency Ra ±0.05µm Ra ±0.3µm
Heat-Affected Zone <5µm depth 30–50µm depth
Noise Level 68 dB(A) 85 dB(A)

Implementation Guide

Machine Setup

  • Contact Wheels: Use 50–90 Shore D hardness rubber for contour following

  • Tension Control: Maintain 18–25 N/mm² belt tension (prevents slippage)

  • Speed Optimization:

    • Metals: 25–35 m/s

    • Composites: 15–20 m/s

    • Ceramics: 8–12 m/s

Workflow Best Practices

  1. Pre-Treatment: Degrease surfaces with Hans’ CleanCut Solution (pH-neutral)

  2. Grit Progression:

    • 80 → 120 → 220 → 400 for mirror finishes

  3. Post-Process:

    • Ultrasonic clean parts to remove embedded diamond particles

Sustainability Impact

  • Material Savings: 70% less abrasive waste vs. disposable belts

  • Energy Efficiency: 1.2 kW avg. power consumption (vs. 3.5 kW for equivalent grinding)

  • Recycling Program: Return used belts for diamond recovery (85% reclamation rate)

Why Choose Hans?

  • Application Engineering: Free on-site trials with your specific material

  • Custom Solutions:

    • Bespoke widths (up to 3000mm)

    • Hybrid grit patterns (e.g., coarse edge + fine center)

  • Global Support: 24/7 technical hotline with AR-assisted troubleshooting

Upgrade Your Surface Finishing Game
Explore our Diamond Belt Starter Kits, including:

  • 3 grit-matched belts

  • Tension calibration tool

  • Lifetime process optimization software license
